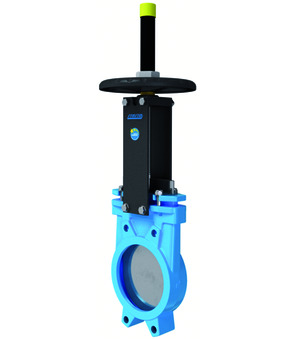

Knife gate valve with handwheel AB1VN2H2-5-150-B
Knife gate valve with handwheel Series AB1V; Wafer type; Non rising stem; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0...10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 17.0 Kg
Short Itemnumber: AB1VN2H25150B
Country of origin: Spain
Weight: 17.0 Kg
Short Itemnumber: AB1VN2H25150B
knife gate valve with handwheel series AB1V; wafer type; non rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0...10bar
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| pressure | |
| Pressure range | 0...10 bar |
No spare parts are available for this product.
