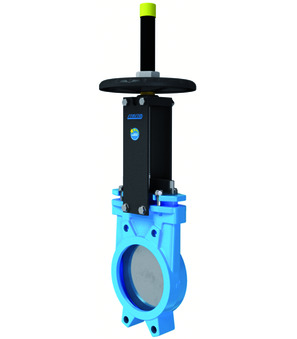

Knife gate valve with handwheel AB1V2H2-5-65-B

Price:

999.999,00 zł
Knife gate valve with handwheel Series AB1V Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - manually operated
  4. Other materiales - A04
  5. Knife gate valve with handwheel Series AB1V
  6. AB1V2H2-5-65-B
Knife gate valve with handwheel AB1V2H2-5-65-B
  2. STASTO Store
  3. Knife gate valve with handwheel AB1V2H2-5-65-B
Knife gate valve with handwheel AB1V2H5-5N-300-B
Knife gate valve with handwheel AB1V2H5-5N-300-B
cena na zapytanie
Knife gate valve with handwheel AB1V2H2-5-80-B
Knife gate valve with handwheel AB1V2H2-5-80-B
cena na zapytanie

Knife gate valve with handwheel AB1V2H2-5-65-B

Knife gate valve with handwheel Series AB1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 1.99 Kg
Short Itemnumber:AB1V2H2565B
https://www.stasto.pl/web/image/product.template/54580/image_1920?unique=1230620

Knife gate valve with handwheel Series AB1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 40 mm
pressure
Pressure range 0...10 bar
No spare parts are available for this product.
dimension
DN 65 mm
Length 40 mm
pressure
Pressure range 0...10 bar
No spare parts are available for this product.
