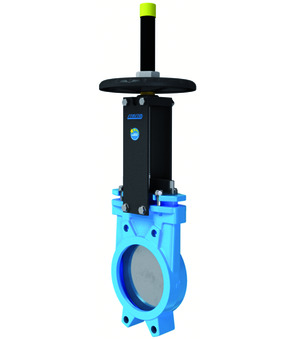

Knife gate valve with handwheel AB1V2H2-5-400-B
Knife gate valve with handwheel Series AB1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 400mm; Length 100mm; Pressure range 0…6bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 14.86 Kg
Short Itemnumber: AB1V2H25400B
Country of origin: Spain
Weight: 14.86 Kg
Short Itemnumber: AB1V2H25400B
Knife gate valve with handwheel Series AB1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90°C; DN 400mm; Length 100mm; Pressure range 0…6bar
| dimension | |
|---|---|
| DN | 400 mm |
| Length | 100 mm |
| pressure | |
| Pressure range | 0...6 bar |
No spare parts are available for this product.
