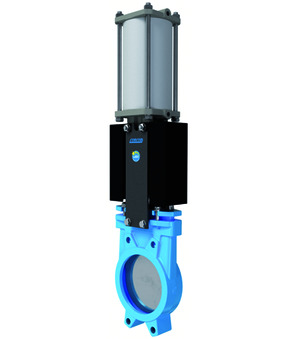

Knife gate valve with double acting actuator AB1N2H2-5-200-BK

Knife gate valve with double acting actuator AB1N2H2-5-200-BK

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...7bar

Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber: AB1N2H25200BK
https://www.stasto.pl/web/image/product.template/222328/image_1920?unique=691a60b

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; Stainless steel mudguards;; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...7bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 200 mm
Length 60 mm
pressure
Pressure range 0...7 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Knife gate valve with double acting actuator Series AB1N_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie AB1N_DE.pdf
Download
No spare parts are available for this product.
