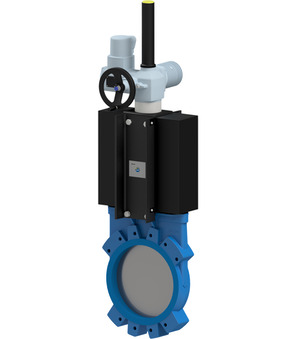

Knife gate valve with electric actuator AB1EM2I2-5-300
Knife gate valve with electric actuator Series AB1EM2H2-5-B; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 300mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA SA07.6
Intrastat No.: 84818061
Country of origin: Spain
Weight: 72.0 Kg
Short Itemnumber:AB1EM2I25300
Country of origin: Spain
Weight: 72.0 Kg
Short Itemnumber:AB1EM2I25300
knife gate valve with electric actuator series AB1EM2H2-5-B; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0…6bar; actuator AUMA SA07.6
| dimension | |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| pressure | |
| Operating pressure | 0...3 bar |
| characteristics | |
| Actuator | AUMA SA07.6 |
No spare parts are available for this product.
| dimension | |
|---|---|
| DN | 300 mm |
| Length | 70 mm |
| pressure | |
| Operating pressure | 0...3 bar |
| characteristics | |
| Actuator | AUMA SA07.6 |
No spare parts are available for this product.
