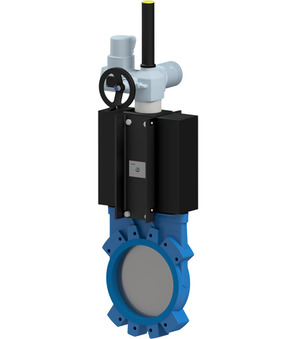

Knife gate valve with electric actuator AB1EM2I2-5-150
Knife gate valve with electric actuator Series AB1EM2H2-5-B; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA07.2
Intrastat No.: 84818061
Country of origin: Spain
Weight: 32.0 Kg
Short Itemnumber:AB1EM2I25150
Country of origin: Spain
Weight: 32.0 Kg
Short Itemnumber:AB1EM2I25150
knife gate valve with electric actuator series AB1EM2H2-5-B; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0…10bar; actuator AUMA SA07.2
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| pressure | |
| Operating pressure | 0...10 bar |
| characteristics | |
| Actuator | AUMA SA07.2 |
No spare parts are available for this product.
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| pressure | |
| Operating pressure | 0...10 bar |
| characteristics | |
| Actuator | AUMA SA07.2 |
No spare parts are available for this product.
