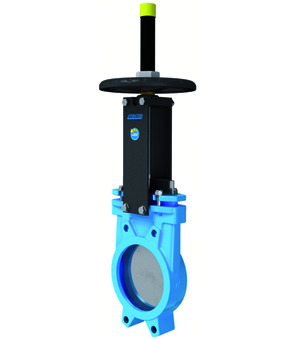

Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN16; Unidirectional sealed; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0...4bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 191.0 Kg
Short Itemnumber: A3V2H25500B
Country of origin: Spain
Weight: 191.0 Kg
Short Itemnumber: A3V2H25500B
knife gate valve with handwheel; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN16; unidirectional sealed; medium temperature -5...+90°C; DN 500mm; length 110mm; pressure range 0...4bar
Technical specifications
| Pressure range | 0...4 bar |
|---|---|
| Pressure range | 0...4 bar |
| DN | 500 mm |
| Length | 110 mm |
| Pressure range | 0...4 bar |
| Pressure range | 0...4 bar |
| DN | 500 mm |
| Length | 110 mm |
| Medium temperature | -5...+90 °C |
| Brand | STASTO |
No spare parts are available for this product.
