Knife gate valve with handwheel A1V2I2-5-500-01
Knife gate valve with handwheel A1V2I2-5-450-01
Knife gate valve with handwheel A1V2I2-5-450-01
cena na zapytanie
Knife gate valve with handwheel A1V2I2-5-600
Knife gate valve with handwheel A1V2I2-5-600
cena na zapytanie

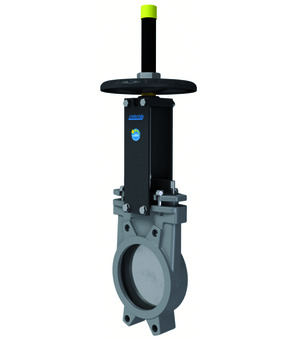

Knife gate valve with handwheel A1V2I2-5-500-01

knife gate valve with handwheel series A1V; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 500mm; length 110mm; pressure range 0...4bar; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness

Intrastat No.: 84818063
Country of origin: Spain
Short Itemnumber:A1V2I2550001
https://www.stasto.pl/web/image/product.template/176967/image_1920?unique=72fc914

knife gate valve with handwheel series A1V; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 500mm; length 110mm; pressure range 0...4bar; incl. inspection certificate EN-10204-3.1 for material, pressure, function and tightness

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range
  • Pressure range
  • Medium temperature

This combination does not exist.

Availability:
Contact Us
dimension
DN 500 mm
Length 110 mm
pressure
Pressure range 0...4 bar, 0...4 bar
characteristics
Medium temperature -5...+90 °C
