Knife gate valve with handwheel Series A1V2HS2-5-B Store

Knife gate valve with handwheel A1V2HS2-5-200-B-01

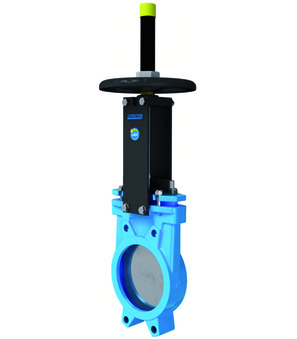

Name: Knife gate valve with handwheel A1V2HS2-5-200-B-01
Brand: STASTO
SKU: A1V2HS2-5-200-B-01

Knife gate valve with handwheel Series A1V2HS2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 200mm; Length 60mm; Pressure range 0...10bar; Stem extension H1=6250mm; d1=200mm

Intrastat No.: 84818061
Country of origin: Spain
Short Itemnumber:A1V2HS25200B01

knife gate valve with handwheel series A1V2HS2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar; stem extension H1=6250mm; d1=200mm
