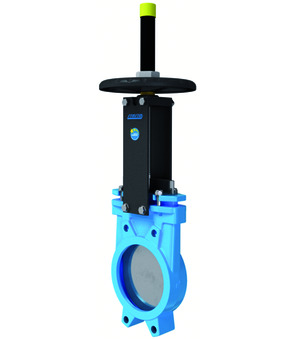

Knife gate valve with handwheel A1V2H5-B-100-B
Knife gate valve with handwheel A1V2H5-B-80-B
Knife gate valve with handwheel A1V2H5-B-80-B
cena na zapytanie
Knife gate valve with handwheel A1V2H5-B-125-B
Knife gate valve with handwheel A1V2H5-B-125-B
cena na zapytanie

Knife gate valve with handwheel A1V2H5-B-100-B

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+90°C; DN 100mm; Length 50mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 10.63 Kg
Short Itemnumber:A1V2H5B100B
https://www.stasto.pl/web/image/product.template/139044/image_1920?unique=2f4ecdf

knife gate valve with handwheel series A1V; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -10...+90°C; DN 100mm; length 50mm; pressure range 0...10bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 100 mm
Length 50 mm
pressure
Pressure range 0...10 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Knife gate valve with handwheel Series A1V_EN.pdf
Download

ZIP
Datové listy
1
Datový list_nožové šoupátko s ručním kolem série A1V_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Plattenschieber mit Handrad Serie A1V_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_tolózár kézikerékkel sorozat A1V_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zasuwy nożowe z kołem ręcznym Seria A1V_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Ploščati ventil z ročnim kolesom serija A1V_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_nožasti zasun sa ručnim točkom serije A1V_SRLATIN.pdf
Download
No spare parts are available for this product.
