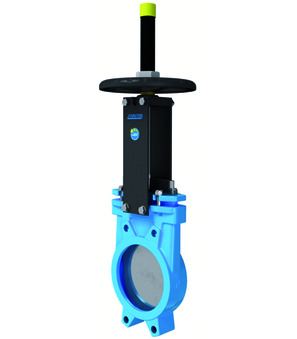

Knife gate valve with handwheel A1V2H5-5N-200-B
  2. STASTO Store
  3. Knife gate valve with handwheel A1V2H5-5N-200-B
Knife gate valve with handwheel A1V2H5-5N-150-B
Knife gate valve with handwheel A1V2H5-5N-150-B
cena na zapytanie
Knife gate valve with handwheel A1V2H5-5N-250-B
Knife gate valve with handwheel A1V2H5-5N-250-B
cena na zapytanie

Knife gate valve with handwheel A1V2H5-5N-200-B

knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 28.0 Kg
Short Itemnumber:A1V2H55N200B
https://www.stasto.pl/web/image/product.template/221815/image_1920?unique=cd548b7

knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 200mm; length 60mm; pressure range 0...10bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
DN 50 mm
Length 40 mm
pressure
Pressure range 0...10 bar
No spare parts are available for this product.
dimension
DN 50 mm
Length 40 mm
pressure
Pressure range 0...10 bar
No spare parts are available for this product.
