A1V2H2-5-250-01

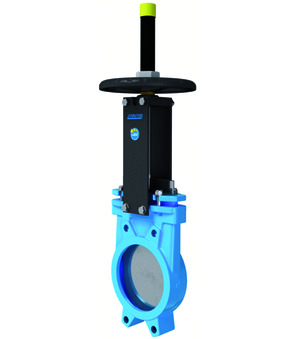

Knife gate valve with handwheel; Wafer type; Rising stem; Ductile iron EN-GJS-500-7; Gate 1.4301; Soft-sealing EPDM; Packing PTFE-Synthetic; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0...6 bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 41.0 Kg
Short Itemnumber: A1V2H2525001
Country of origin: Spain
Weight: 41.0 Kg
Short Itemnumber: A1V2H2525001
knife gate valve with handwheel; wafer type; rising stem; ductile iron EN-GJS-500-7; gate AISI 304; soft-sealing EPDM; packing PTFE-synthetic; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; DN 250mm; length 70mm; pressure range 0...6 bar
| dimension | |
|---|---|
| DN | 250 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...6 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
No spare parts are available for this product.
