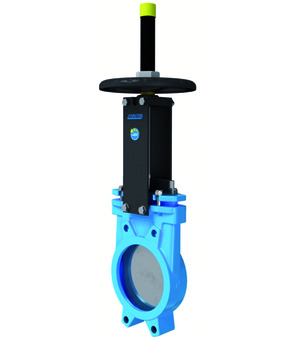

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal sealing; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+270 °C; Prepared for 2 inductive limit switches M18; DN 100mm; Length 50mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 9.04 Kg
Short Itemnumber: A1V1H1B100PIB
knife gate valve with handwheel series A1V; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; metal sealing; packing PTFE-synthetic; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -10...+270 °C; prepared for 2 inductive limit switches M18; DN 100mm; length 50mm; pressure range 0...10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 100 mm |
| Length | 50 mm |
A1V1H1-B-100-PIB
