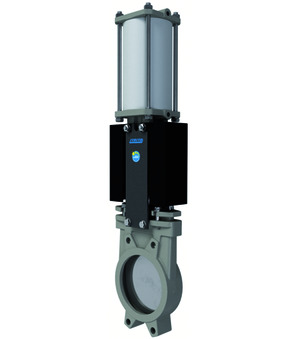

Knife gate valve with double acting actuator A1N2I4-7-300

Knife gate valve with double acting actuator A1N2I4-7-300

Knife gate valve with double acting actuator Series A1N; Wafer type; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -20...+180 °C; DN 300mm; Length 70mm; Pressure range 0...6bar

Intrastat No.: 84818063
Country of origin: Spain
Weight: 9.23 Kg
Short Itemnumber: A1N2I47300
https://www.stasto.pl/web/image/product.template/106538/image_1920?unique=d2a66fd

knife gate valve with double acting actuator series A1N; wafer type; body AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -20...+180 °C; DN 300mm; length 70mm; pressure range 0...6bar

999.999,00 zł 999999.0 PLN 999.999,00 zł

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 300 mm
Length 70 mm
pressure
Pressure range 0...6 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Knife gate valve with double acting actuator Series A1N_EN.pdf
Download

ZIP
Datové listy
1
Datový list_nožové šoupátko s dvojčinným pneupohonem série A1N_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_tolózár kétoldali működésű munkahengerrel sorozat A1N_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zasuwy nożowe z napędem pneumatycznym dwustronnego działania Seria A1N_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Ploščati ventil z dvosmernim pnevmatskim pogonom serija A1N_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_nožasti zasun sa aktuatorom dvostrukog dejstva serije A1N_SRLATIN.pdf
Download
No spare parts are available for this product.
