Knife gate valve with double acting actuator Series A1N-PI Store
  1. Products
  2. Armatures
  3. Valves, butterfly valves and gate valves - automatically operated
  4. Knife gate valves - pneumatically operated
  5. Knife gate valve with double acting actuator Series A1N-PI

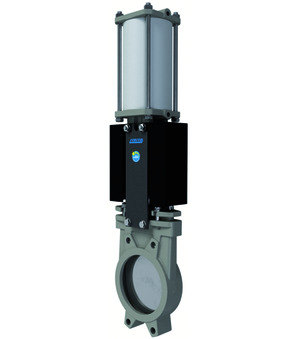

  6. A1N2I2-5-500-PI-ABS41-CS02400-6-14423-0525
A1N2I2-5-500-PI-ABS41-CS02400-6-14423-0525

A1N2I2-5-500-PI-ABS41-CS02400-6-14423-0525

A1N2I2-5-500-PI
Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N; Zwischenflanschausführung; Gehäuse 1.4408; Schieberplatte 1.4401; weichdichtend EPDM; Packung PTFE-synthetisch/EPDM; Flanschnenndruck PN10; einseitig dichtend; Steuerdruck 5,5...8bar; Mediumstemperatur -5...+90°C; vorbereitet für 2 induktive Endlagenschalter MSU03, MSU04, MSU05; DN 500mm; Einbaulänge 110mm; Druckbereich 0…4bar
ABS41
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Type of coil CS; Connector size 16mm; 5/2-Wege-Magnetventil (K52W1012); DN gate valve 450-500mm
CS02400
Coil Type CS; Connector size 16mm; Voltage 24VDC
6-14423-0525
Connector; Connector size 16mm; With integrated LED-yellow and VDR; Voltage 24VAC/DC

Intrastat No.: 84818063
Country of origin: Spain
Weight: 68.126 Kg
Short Itemnumber: A1N2I25500PIABS41CS024006144230525
https://www.stasto.pl/web/image/product.template/206608/image_1920?unique=b9bbba7

A1N2I2-5-500-PI
Plattenschieber mit doppeltwirkendem Pneumatikantrieb Serie A1N; Zwischenflanschausführung; Gehäuse 1.4408; Schieberplatte 1.4401; weichdichtend EPDM; Packung PTFE-synthetisch/EPDM; Flanschnenndruck PN10; einseitig dichtend; Steuerdruck 5,5...8bar; Mediumstemperatur -5...+90°C; vorbereitet für 2 induktive Endlagenschalter MSU03, MSU04, MSU05; DN 500mm; Einbaulänge 110mm; Druckbereich 0…4bar
ABS41
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; type of coil CS; connector size 16mm; 5/2-Wege-Magnetventil (K52W1012); DN gate valve 450-500mm
CS02400
coil type CS; connector size 16mm; voltage 24VDC
6-14423-0525
connector; connector size 16mm; with integrated LED-yellow and VDR; voltage 24VAC/DC

50.736,00 zł 50736.0 PLN 50.736,00 zł

cena na zapytanie
