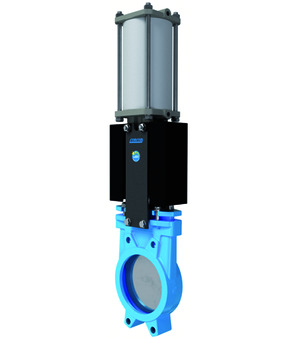

A1N2HS2-5-400-PIB
Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4401; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90 °C; DN 400mm; Length 100mm; Pressure range 0-6bar; Prepared for 2 inductive limit switches M18; More resistant coating 200my; RAL5015
Country of origin: Spain
Weight: 50.0 Kg
Short Itemnumber: A1N2HS25400PIB
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90 °C; DN 400mm; length 100mm; pressure range 0-6bar; prepared for 2 inductive limit switches M18; more resistant coating 200my; RAL5015
