A1N2H6-G-250-PIB-01-ABS42-EPC02400-MSU04

Name: A1N2H6-G-250-PIB-01-ABS42-EPC02400-MSU04
Brand: STASTO
SKU: A1N2H6-G-250-PIB-01-ABS42-EPC02400-MSU04

A1N2H6-G-250-PIB-01

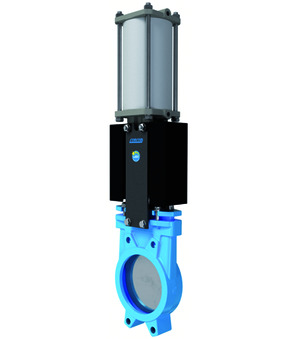

Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed Silicone; Packing PTFE-Synthetic/Silicone; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+200°C; Prepared for 2 inductive switches; DN 250mm; Length 70mm; Pressure range 0…8bar; Sliding guide PTFE; High temperature-Coating
ABS42
Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Standard coil C001; Connector size 22mm; 5/2-Wege-Magnetventil (E52W1SM14); DN gate valve 50-400mm
EPC02400
Coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
MSU04
Electrical position indication Series MSU; Suitable for Knife gate valve; Mounted inductive proximity switch, ATEX, EExi (1 Pieces); Cable length 2m

Intrastat No.: 84818061
Country of origin: Spain
Weight: 60.82 Kg
Short Itemnumber: A1N2H6G250PIB01ABS42EPC02400MSU04

A1N2H6-G-250-PIB-01
knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed silicone; packing PTFE-synthetic/silicone; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+200°C; prepared for 2 inductive switches; DN 250mm; length 70mm; pressure range 0…8bar; sliding guide PTFE; high temperature-coating
ABS42
mounted pilot valve series ABS; suitable for pneumatically operated knife gate valves; 5/2-way solenoid valve; flow control valves; silencer; mounted at cylinder; standard coil C001; connector size 22mm; 5/2-Wege-Magnetventil (E52W1SM14); DN gate valve 50-400mm
EPC02400
coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC
MSU04
electrical position indication series MSU; suitable for knife gate valve; mounted inductive proximity switch, ATEX, EExi (1 pieces); cable length 2m

On request

DN
- 250 mm
Length
- 70 mm
Design
- ATEX
Pressure range
- 0...10 bar
Pressure range
- 0...8 bar

This combination does not exist.

Availability:

dimension
DN	250 mm
Length	70 mm
design
Design	ATEX
pressure
Pressure range	0...10 bar, 0...8 bar

Data sheets, Instructions, 3D-files and Certificates...
