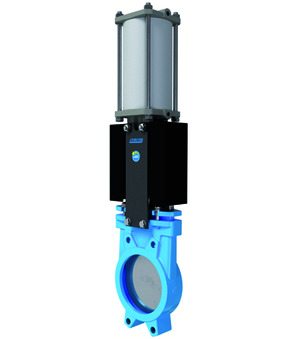

Gate valve with double acting pneumatic actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -10...+90 °C; DN 150mm; Length 60mm; Pressure range 0-10bar
Country of origin: Spain
Weight: 20.45 Kg
Short Itemnumber: A1N2H55150B
gate valve with double acting pneumatic actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -10...+90 °C; DN 150mm; length 60mm; pressure range 0-10bar
| Pressure range | 0-10bar |
A1N2H5-5-150-B
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · A1N2H55150B
CAD-STEP 5,3 MB Updated 27/09/2026
