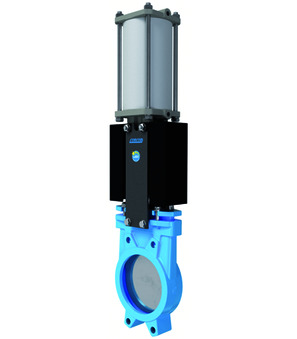

Knife gate valve with double acting actuator Series A1N2H3-5V-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed FKM; Screws Stainless steel; Packing PTFE-Synthetic/FKM; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature 0...+120°C; DN 100mm; Length 50mm; Pressure range 0…10bar
Intrastat No.: 84818061
Country of origin: Spain
Weight: 12.15 Kg
Short Itemnumber: A1N2H35V100B
Country of origin: Spain
Weight: 12.15 Kg
Short Itemnumber: A1N2H35V100B
knife gate valve with double acting actuator series A1N2H3-5V-B; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed FKM; screws stainless steel; packing PTFE-synthetic/FKM; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature 0...+120°C; DN 100mm; length 50mm; pressure range 0…10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 100 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 100 mm |
| Length | 50 mm |
No spare parts are available for this product.
