Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B Store

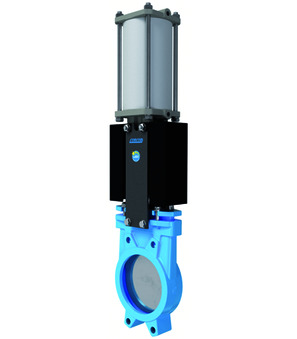

Knife gate valve with double acting actuator A1N2H2-5-80-2EI-B

Name: Knife gate valve with double acting actuator A1N2H2-5-80-2EI-B
Brand: STASTO
SKU: A1N2H2-5-80-2EI-B

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 inductive limit switches OPEN/CLOSED; DN 80mm; Length 50mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 9.0 Kg
Short Itemnumber:A1N2H25802EIB

knife gate valve with double acting actuator series A1N2H2-5-2EM-B; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; incl. 2 inductive limit switches OPEN/CLOSED; DN 80mm; length 50mm; pressure range 0...10bar
