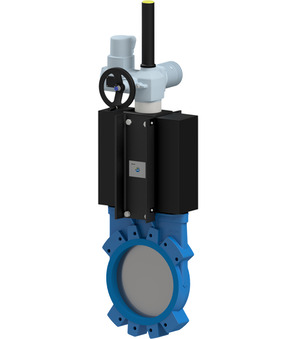

Knife gate valve with electric actuator A1EM2H2-5-450-B
Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 450mm; Length 106mm; Pressure range 0…4bar; Actuator AUMA SA10.2
Country of origin: Spain
Weight: 0.09 Kg
Short Itemnumber:A1EM2H25450B
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 450mm; length 106mm; pressure range 0…4bar; actuator AUMA SA10.2
| dimension | |
|---|---|
| DN | 450 mm |
| Length | 106 mm |
| pressure | |
| Pressure range | 0...4 bar |
| characteristics | |
| Actuator | AUMA SA10.2 |
