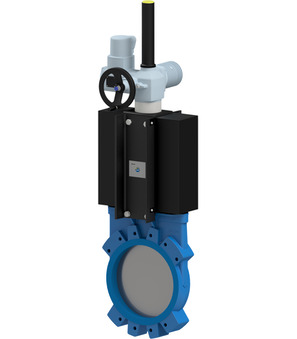

Knife gate valve with electric actuator Series A1EM2H2-5-B; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V 50Hz; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SA0.76; Stem extension H1=3500mm; d1=400mm; ; ATEX zone 1 and 21
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: A1EM2H25150B02
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0…10bar; actuator AUMA SA07.2
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
| Pressure range | 0...10 bar |
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
| Brand | STASTO |
