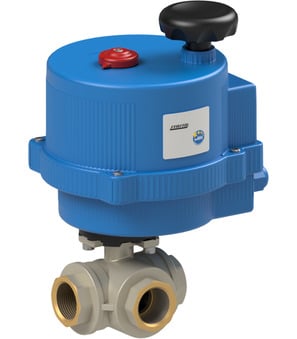

Ball valve with electrical actuator 8E029004-3/8"

Ball valve with electrical actuator 8E029004-3/8"

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3/8"; DN 10mm; Pressure range 0-30bar; Length 67mm; Operating time 10s; Voltage 100-240VAC; Ball L

Kugelhahn mit Elektroantrieb Serie 8E029, 8E028
Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.023 Kg
Short Itemnumber: 8E02900438
https://www.stasto.pl/web/image/product.template/79120/image_1920?unique=f2dcbea

Ball valve with electrical actuator Series 8E029, 8E028; 3-way-type; Sealing on three ports; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3/8"; DN 10mm; Pressure range 0-30bar; Length 67mm; Operating time 10s; Voltage 100-240VAC; Ball L

2.224,20 zł 2224.2 PLN 2.224,20 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...30 bar
Female thread RP 3/8"
DN 10 mm
Length 67 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...30 bar
Female thread RP 3/8"
DN 10 mm
Length 67 mm
Operating time 10 s
Voltage 100-240VAC
Ball L

8E029004-3/8"

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of brass 3600-3/8"
3600-3/8" x 1.0 Pcs
Ball valve made of brass 3600-3/8"
Ball valve made of brass Series 3600, 3500; 3-way-type; Sealing on three ports; Female thread; Seals PTFE/FKM/EPDM; Medium temperature -20...+160°C; Hand lever Steel; RP 3/8"; Nominal diameter 10mm; Pressure range 0-30bar; Length 67mm; Ball L
Electrical actuator VB015-H
VB015-H x 1.0 Pcs
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
