Flanged ball valve with electrical actuator 8E005004-65

Price:

7.905,40 zł
Flanged ball valve with electrical actuator Series 8E005 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - electrically operated
  5. Flanged ball valve with electrical actuator Series 8E005
  6. 8E005004-65
Flanged ball valve with electrical actuator 8E005004-65
Flanged ball valve with electrical actuator 8E005002-65
Flanged ball valve with electrical actuator 8E005002-65
7.592,80 zł
7.592,80 zł
Flanged ball valve with electrical actuator 8E005002-80
Flanged ball valve with electrical actuator 8E005002-80
8.730,70 zł
8.730,70 zł

Flanged ball valve with electrical actuator 8E005004-65

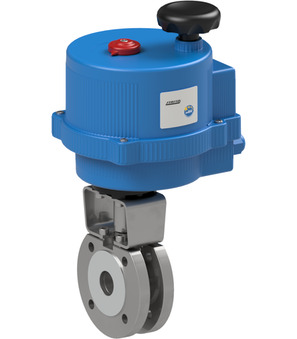

Flanged ball valve with electrical actuator Series 8E005; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 65mm; Pressure range 0-16bar; Length 103mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 16.43 Kg
Short Itemnumber:8E00500465
https://www.stasto.pl/web/image/product.template/76108/image_1920?unique=c09fc3a

Flanged ball valve with electrical actuator Series 8E005; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 65mm; Pressure range 0-16bar; Length 103mm; Operating time 27s; Voltage 100-240VAC

7.905,40 zł 7905.4 PLN 7.905,40 zł

cena na zapytanie

  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 65 mm
Length 103 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series 8E005_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E00500465.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série 8E005_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med elektrisk aktuator Serie 8E005_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie 8E005_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με φλάντζες με ηλεκτρικό ενεργοποιητή Σειρά 8E005_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador eléctrico Serie 8E005_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili sähkökäytöllä Sarja 8E005_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur électrique Série 8E005_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s električnim pogonom Serija 8E005_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E005_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore elettrico Serie 8E005_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenskuleventil med elektrisk aktuator Serie 8E005_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met elektrische aandrijving Serie 8E005_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E005_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator electric serie 8E005_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa z električnim pogonom serija 8E005_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E005_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med elektriskt ställdon Serie 8E005_SV.pdf
Download
Flanged ball valve 721000-65
721000-65 x 1.0
Flanged ball valve 721000-65
Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm
Add to Cart
Electrical actuator VB110-H
VB110-H x 1.0
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
Add to Cart
Accessory Products
