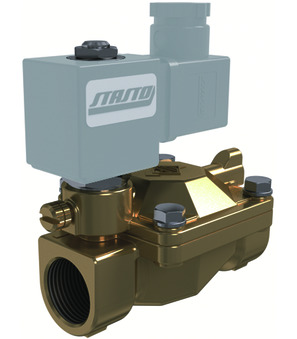

2/2-way solenoid valve 21W7KB500-MR-Y224VDC-2

Price:

3.030,70 zł
2/2-way solenoid valve Series 21W-MR Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W-MR
  6. 21W7KB500-MR-Y224VDC-2
2/2-way solenoid valve 21W7KB500-MR-Y224VDC-2
2/2-way solenoid valve 21W7KB500-MR
2/2-way solenoid valve 21W7KB500-MR
2.200,40 zł
2.200,40 zł
21W7KB500-MR-BDA08012CS-C003-32-6
21W7KB500-MR-BDA08012CS-C003-32-6
2.313,50 zł
2.313,50 zł

2/2-way solenoid valve 21W7KB500-MR-Y224VDC-2

21W7KB500-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 2"; DN 50mm; pressure AC/DC 0,2-10bar; length 172mm
Y224VDC-2
mounted coil; coil type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; cable length 3 m; voltage 24VDC; medium temperature max. 80°C

Intrastat No.: 84818099
Country of origin: Italy
Weight: 5.245 Kg
Short Itemnumber:21W7KB500MRY224VDC2
https://www.stasto.pl/web/image/product.template/223469/image_1920?unique=eb38ccc

21W7KB500-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 2"; DN 50mm; pressure AC/DC 0,2-10bar; length 172mm
Y224VDC-2
mounted coil; coil type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; cable length 3 m; voltage 24VDC; medium temperature max. 80°C

3.030,70 zł 3030.7 PLN 3.030,70 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 2"
DN 50 mm
Length 172 mm
Designs
Connector size 32 mm
design
Design ATEX
pressure
Pressure AC/DC 0,2...10 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
