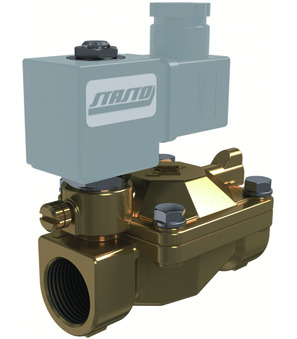

2/2-way solenoid valve 21W7KB500-MR-BDA08024CS

Price:

2.303,40 zł
2/2-way solenoid valve Series 21W-MR Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - pilot operated
  5. 2/2-way solenoid valve Series 21W-MR
  6. 21W7KB500-MR-BDA08024CS
2/2-way solenoid valve 21W7KB500-MR-BDA08024CS
21W7KB500-MR-BDV08024CY
21W7KB500-MR-BDV08024CY
2.332,00 zł
2.332,00 zł
2/2-way solenoid valve 21W7KB500-MR-BDA08024CS-C003-32-6
2/2-way solenoid valve 21W7KB500-MR-BDA08024CS-C003-32-6
2.313,50 zł
2.313,50 zł

2/2-way solenoid valve 21W7KB500-MR-BDA08024CS

21W7KB500-MR
2/2-way solenoid valve Series 21W-MR; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm; G 2"; DN 50mm; Pressure AC/DC 0,2-10bar; Length 172mm
BDA08024CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 24VDC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 4.87 Kg
Short Itemnumber:21W7KB500MRBDA08024CS
https://www.stasto.pl/web/image/product.template/192445/image_1920?unique=eb38ccc

21W7KB500-MR
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 2"; DN 50mm; pressure AC/DC 0,2-10bar; length 172mm
BDA08024CS
coil type BDA; standard; connector size 32mm; voltage 24VDC

2.303,40 zł 2303.4 PLN 2.303,40 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 2"
DN 50 mm
Length 172 mm
Designs
Connector size 32 mm
Electrical key figures
Voltage 24VDC
Voltage type DC
pressure
Pressure AC/DC 0,2...10 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
Approval CE
