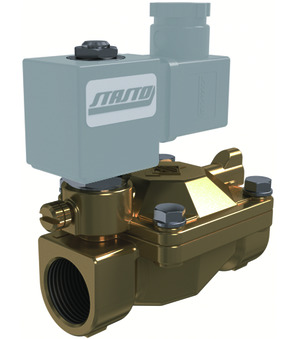

2/2-way solenoid valve 21W4KV250-MR-BDV08230AY-C003-32-6
21W4KV250-MR
2/2-way solenoid valve Series 21W-V-MR; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm; G 1"; DN 25mm; Pressure AC/DC 0,2...16bar; Length 104mm
BDV08230AY
Coil Type BDV; For humid area; Approval CSA/UL/VDE; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC
Country of origin: Italy
Weight: 1.32 Kg
Short Itemnumber: 21W4KV250MRBDV08230AYC003326
21W4KV250-MR
2/2-way solenoid valve series 21W-V-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 1"; DN 25mm; pressure AC/DC 0,2...16bar; length 104mm
BDV08230AY
coil type BDV; for humid area; approval CSA/UL/VDE; connector size 32mm; voltage 230V/50Hz, 240V/60Hz
C003-32-6
connector; connector size 32mm; standard; voltage 0...250VAC/DC
| dimension | |
|---|---|
| Female thread | G 1" |
| DN | 25 mm |
| Length | 104 mm |
| Designs | |
| Connector size | 32 mm |
| design | |
| Design | Standard |
| Electrical key figures | |
| Voltage | 230V/50Hz-240V/60Hz |
| Voltage type | AC |
| pressure | |
| Pressure AC/DC | 0,2...16 bar |
| characteristics | |
| Coil | BDV |
| Approval | UL/CSA/VDE |
