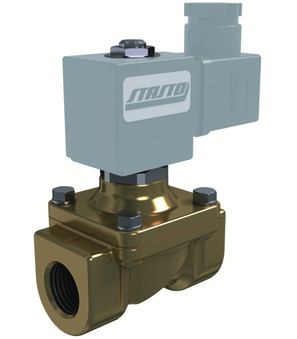

2/2-way solenoid valve 21HT5K0V160-BDA08223DS-C003-31-CV20-6

2/2-way solenoid valve 21HT5K0V160-BDA08223DS-C003-31-CV20-6

21HT5K0V160
2/2-way solenoid valve Series 21H..K0V; Combined operated; NC; Body Brass; Stainless steel tube; Seal FKM; Connector size 32mm; G 3/4"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-1,5bar; Medium -10/+120°C; Length 70mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

2/2-Wege-Magnetventil Serie 21H..K0V
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.73 Kg
Short Itemnumber: 21HT5K0V160BDA08223DS
https://www.stasto.pl/web/image/product.template/184411/image_1920?unique=10c6678

21HT5K0V160
2/2-way solenoid valve series 21H..K0V; combined operated; NC; body brass; stainless steel tube; seal FKM; connector size 32mm; G 3/4"; DN 16mm; pressure AC 0-14bar; pressure DC 0-1,5bar; medium -10/+120°C; length 70mm; standard coil BDA
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

587,80 zł 587.8 PLN 587,80 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 16 mm
Pressure AC 0...14 bar
Medium temperature -10...+120 °C
Length 70 mm
All specifications (10)
Documents
Data sheets, drawings and CAD files
DN 16 mm
Pressure AC 0...14 bar
Medium temperature -10...+120 °C
Length 70 mm
Seal FKM
Pressure DC 0...1,5 bar
Female thread G 3/4"
Voltage 220-230V/50-60Hz
Approval CE
Voltage type AC

21HT5K0V160-BDA08223DS
