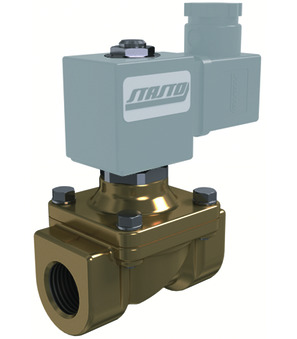

2/2-way solenoid valve 21HT4K0Y160-UDA-UDA12024CS

2/2-way solenoid valve 21HT4K0Y160-UDA-UDA12024CS

21HT4K0Y160-UDA
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 1/2"; DN 16mm; Pressure AC 0-14bar; Pressure DC 0-11bar; Length 70mm; Standard coil UDA
UDA12024CS
Coil Type UDA; Standard; Connector size 32mm; Voltage 24VDC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy Made in Europe
Weight: 1.17 Kg
Short Itemnumber: 21HT4K0Y160UDAUDA12024CS
https://www.stasto.pl/web/image/product.template/212888/image_1920?unique=589b842

21HT4K0Y160
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 1/2"; DN 16mm; pressure AC 0-14bar; pressure DC 0-2,5bar; length 70mm; standard coil BDA
UDA12024CS
coil type UDA; standard; connector size 32mm; voltage 24VDC

588,30 zł 588.3 PLN 588,30 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
All specifications (10)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 16 mm
Length 70 mm
Pressure AC 0...14 bar
Seal NBR
Medium temperature -10...+90 °C
Pressure DC 0...11 bar
Voltage 24VDC
Approval CE
Voltage type DC

21HT4K0Y160-UDA-UDA12024CS
