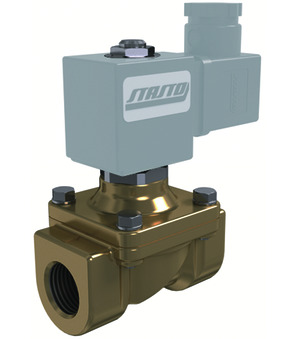

2/2-way solenoid valve 21HF8K0B400-BDA08223DS-C003-31-6

2/2-way solenoid valve 21HF8K0B400-BDA08223DS-C003-31-6

21HF8K0B400
2/2-way solenoid valve Series 21H..K0Y; Combined operated; NC; Body Brass; Stainless steel tube; Seal NBR; Medium temperature -10...+90°C; Connector size 32mm; G 11/2"; DN 40mm; Pressure AC 0-16bar; Length 128mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-6
Connector; Connector size 32mm; Standard; Voltage 0-250VAC/DC

2/2-Wege-Magnetventil Serie 21H..K0Y
Intrastat No.: 84818099
Country of origin: Italy
Weight: 2.28 Kg
Short Itemnumber: 21HF8K0B400BDA08223DSC003316
https://www.stasto.pl/web/image/product.template/184681/image_1920?unique=e04ce20

21HF8K0B400
2/2-way solenoid valve series 21H..K0Y; combined operated; NC; body brass; stainless steel tube; seal NBR; medium temperature -10...+90°C; connector size 32mm; G 11/2"; DN 40mm; pressure AC 0-16bar; length 128mm; standard coil BDA
BDA08223DS
coil type BDA; standard; connector size 32mm; voltage 220-230V/50-60Hz
C003-31-6
connector; connector size 32mm; Standard; voltage 0-250VAC/DC

1.540,00 zł 1540.0 PLN 1.540,00 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 40 mm
Pressure AC 0...16 bar
Length 128 mm
Medium temperature -10...+90 °C
All specifications (9)
Documents
Data sheets, drawings and CAD files
DN 40 mm
Pressure AC 0...16 bar
Length 128 mm
Medium temperature -10...+90 °C
Seal NBR
Female thread G 1 1/2"
Voltage 220-230V/50-60Hz
Approval CE
Voltage type AC

21HF8K0B400-BDA08223DS-C003-31-6
