21A8KV55-BDA08110DS-C003-32-LV-1

21A8KV55-BDA08110DS-C003-32-LV-1

21A8KV55

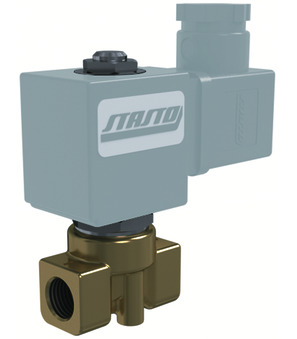

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 5,5mm; Pressure AC 0-3bar; Pressure DC 0-1bar; Length 58mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC

2/2-Wege-Magnetventil Serie 21A
2/2-Wege-Magnetventil Serie 21A
Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.43 Kg
Short Itemnumber: 21A8KV55BDA08110DSC00332LV1
https://www.stasto.pl/web/image/product.template/190689/image_1920?unique=cd9df10

21A8KV55
2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; standard coil BDA; connector size 32mm; G 1/2"; DN 5,5mm; pressure AC 0-3bar; pressure DC 0-1bar; length 58mm
BDA08110DS
coil type BDA; standard; connector size 32mm; voltage 110V/50-60Hz
C003-32-LV-1
connector; connector size 32mm; with integrated LED-yellow and VDR; voltage 230VAC/DC

391,60 zł 391.6 PLN 391,60 zł

cena na zapytanie

excl. tax
  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread G 1/2"
DN 5,5 mm
Length 58 mm
Pressure AC 0...3 bar
All specifications (11)
Documents
Data sheets, drawings and CAD files
Female thread G 1/2"
DN 5,5 mm
Length 58 mm
Pressure AC 0...3 bar
Pressure DC 0...1 bar
Seal FKM
Medium temperature -10...+120 °C
Voltage 110V/50-60Hz
Voltage type AC
Design With integrated LED-yellow and VDR
Approval CE

21A8KV55-BDA08110DS-C003-32-LV-1

Documents

9 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

3
German / Deutsch
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

3
English
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

3
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

3
French / Français
ZIP

Data Sheets

3

CAD / 3D

3
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

3
Hungarian / Magyar
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

3
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

3
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

3
Polish / Język polski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

3
Slovenian / slovenščina
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Serbian (Latin) / srpski
ZIP

Data Sheets

3

Assembly and Operating Instructions

1

Declarations of Conformity

2

CAD / 3D

3
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

3
2/2-way solenoid valve 21A8KV55
21A8KV55 x 1.0 Pcs
2/2-way solenoid valve 21A8KV55
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 5,5mm; Pressure AC 0-3bar; Pressure DC 0-1bar; Length 58mm
BDA08110DS
BDA08110DS x 1.0 Pcs
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
C003-32-LV-1 x 1.0 Pcs
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
