21A2ZV55-GDV-GDV14230AY-C003-32-6

Price:

613,80 zł
2/2-way solenoid valve Series 21A.Z Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.Z
  6. 21A2ZV55-GDV-GDV14230AY-C003-32-6

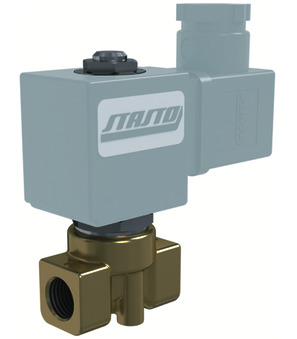

21A2ZV55-GDV-GDV14230AY-C003-32-6
21A2ZV55-GDV-GDV14110AY-C003-32-LV-1
21A2ZV55-GDV-GDV14110AY-C003-32-LV-1
719,40 zł
719,40 zł
21A2ZV55-GDV-GDV14230AY-C003-31-CV20-6
21A2ZV55-GDV-GDV14230AY-C003-31-CV20-6
658,20 zł
658,20 zł

21A2ZV55-GDV-GDV14230AY-C003-32-6

21A2ZV55-GDV
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/4"; DN 5,5mm; Pressure AC/DC 0-3,5bar; Length 40mm; Standard coil GDV
GDV14230AY
Coil Type GDV/GDH; For higher pressures/temperatures; Connector size 32mm; Voltage 230V/50Hz, 240V/60Hz; Approval CSA/UL/VDE
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.68 Kg
Short Itemnumber:21A2ZV55GDVGDV14230AYC003326
https://www.stasto.pl/web/image/product.template/191274/image_1920?unique=0e0953a

21A2ZV55-GDV
2/2-way solenoid valve series 21A; directly operated; NO; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; connector size 32mm; G 1/4"; DN 5,5mm; pressure AC/DC 0-3,5bar; length 40mm; standard coil GDV
GDV14230AY
coil type GDV/GDH; for higher pressures/temperatures; connector size 32mm; voltage 230V/50Hz, 240V/60Hz; approval CSA/UL/VDE
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC

613,80 zł 613.8 PLN 613,80 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 5,5 mm
Length 40 mm
Designs
Connector size 32 mm
design
Design Standard
Electrical key figures
Voltage 230V/50Hz-240V/60Hz
pressure
Pressure AC/DC 0...3,5 bar
materials
Seal FKM
characteristics
Coil GDV
Medium temperature -10...+140 °C
Approval UL/CSA/VDE
