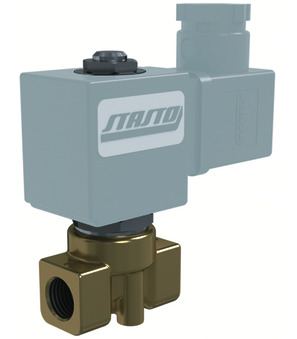

21A2KV30-Y224VDC-2

Price:

1.057,80 zł
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A2KV30-Y224VDC-2
21A2KV30-Y224VDC-2
21A2KV25-BDA08223DS-C003-32-LV-1
21A2KV25-BDA08223DS-C003-32-LV-1
364,30 zł
364,30 zł
21A2KV30-Y1220-240V/50-60HZ-2
21A2KV30-Y1220-240V/50-60HZ-2
868,60 zł
868,60 zł

21A2KV30-Y224VDC-2

21A2KV30
2/2-way solenoid valve Series 21A; directly controlled; NC; Body brass; Guide tube Stainless steel one-piece; Gasket FKM; Medium temperature -10...+120°C; Standard coil BDA; Plug width 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Overall length 40mm
Y224VDC-2
mounted coil; Solenoid coil Type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3 m; Tension 24VDC; Medium temperature max. 80°C

Intrastat No.: 84818099
Country of origin: Hungary
Weight: 0.845 Kg
Short Itemnumber:21A2KV30Y224VDC2
https://www.stasto.pl/web/image/product.template/221129/image_1920?unique=29ba511

21A2KV30
2/2-way solenoid valve Series 21A; directly controlled; NC; Body brass; Guide tube Stainless steel one-piece; Gasket FKM; Medium temperature -10...+120°C; Standard coil BDA; Plug width 32mm; G 1/4"; DN 3mm; Pressure AC 0-10bar; Pressure DC 0-6bar; Overall length 40mm
Y224VDC-2
mounted coil; Solenoid coil Type Y2, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3 m; Tension 24VDC; Medium temperature max. 80°C

1.057,80 zł 1057.8 PLN 1.057,80 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 3 mm
Length 40 mm
Designs
Connector size 32 mm
design
Design ATEX
pressure
Pressure AC 0...10 bar
Pressure DC 0...6 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
