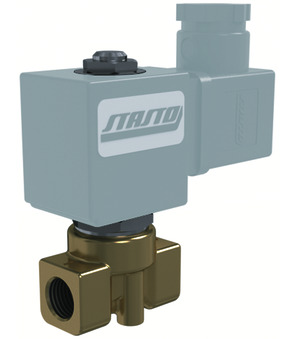

2/2-way solenoid valve 21A2KT45

2/2-way solenoid valve 21A2KT45

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal PTFE; Medium temperature -40...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 4,5mm; Pressure AC 0...5bar; Pressure DC 0...1,5bar; Length 40mm

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.18 Kg
Short Itemnumber: 21A2KT45
https://www.stasto.pl/web/image/product.template/134494/image_1920?unique=c096d6d

2/2-way solenoid valve series 21A; directly operated; NC; body brass; tube stainless steel one-piece; seal PTFE; medium temperature -40...+120°C; standard coil BDA; connector size 32mm; G 1/4"; DN 4,5mm; pressure AC 0...5bar; pressure DC 0...1,5bar; length 40mm

323,00 zł 323.0 PLN 323,00 zł

cena na zapytanie

  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Connector
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/4"
DN 4,5 mm
Length 40 mm
pressure
Pressure AC 0...5 bar
Pressure DC 0...1,5 bar
2/2-way solenoid valve 21A2KV45
21A2KV45 x 1.0
2/2-way solenoid valve 21A2KV45
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/4"; DN 4,5mm; Pressure AC 0-5bar; Pressure DC 0-2bar; Length 40mm
Add to Cart
R451234/T
R451234/T x 1.0
R451234/T
Plunger; Suitable to series 21A.K, 21A16K, 21L1, 21L2, 21X; Dimension DN 4,5 -5,5 mm; Seal PTFE
Add to Cart
