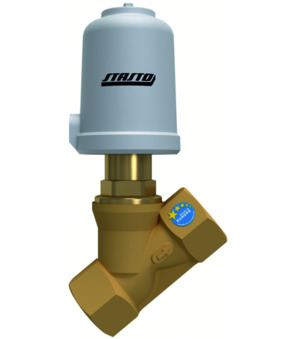

Pneumatically operated seat valve 2/380-27-1106-7102,5-VU
pneumatically operated seat valve; NC; for vacuum; housing bronze; seal EPDM; female thread; closing with flow; medium temperature -10...+80°C; G 11/2"; DN 35mm; operating pressure 0...-0,9 bar; control pressure 4-10bar
Intrastat No.: 84818079
Country of origin: Germany
Short Itemnumber: 23802711067102.5VU
Country of origin: Germany
Short Itemnumber: 23802711067102.5VU
pneumatically operated seat valve; NC; for vacuum; housing bronze; seal EPDM; female thread; closing with flow; medium temperature -10...+80°C; G 11/2"; DN 35mm; operating pressure 0...-0,9 bar; control pressure 4-10bar
| dimension | |
|---|---|
| Female thread | G 1 1/2" |
| DN | 40 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Operating pressure | 0...5,5 bar |
| Control pressure | 5...10 bar |
| characteristics | |
| Medium temperature | -30...+170 °C |
No spare parts are available for this product.
